Occupancy Networks

Rodrigo Loro Schuller

28 November 2019

Introduction

• Rise in learning-based 3D reconstruction (2015-2016);

• The problem of 3D representation:

  • State-of-the-art alternatives;

  • Occupancy network;

• Results and comparisons;

• Failure cases and further work;

The problem of 3D representation

• Harder than 2D - no agreed upon standards;

• State-of-the-art alternatives:

  • Voxels;

  • Point clouds;

  • Meshes;

• Occupancy networks;

Voxels

The good, the bad and the ugly

Voxels - The good

• Natural extension to pixels;

• Simple:

  • We have marching cubes for mesh construction;

  • Works well on GPU;

Voxels - Similarity operations (the bad)

Definition (Similarity) A similarity transformation is an affine transformation $x \mapsto Ax + b$ in which $A = \alpha Q$ for any orthogonal matrix Q.

• Low resolution voxel-based representations don't behave well under ST!

Voxels - Similarity operations (the bad)

Let $T^X_\lambda$ be a group of transformations in the space $X$, with correspondents $T^Y_\lambda$ in the space $Y$.

Definition (Equivariance) A function $\phi : X \to Y$ is equivariant under the group $T$ if $\forall \lambda \in \Lambda,\, \forall x \in X, \, \phi\left(T^X_\lambda x\right) = T^Y_\lambda \phi(x)$.

Voxels - Similarity operations (the bad)

Let $T^X_\lambda$ be a group of transformations in the space $X$, with correspondents $T^Y_\lambda$ in the space $Y$.

Definition (Equivariance) A function $\phi : X \to Y$ is equivariant under the group $T$ if $\forall \lambda \in \Lambda,\, \forall x \in X, \, \phi\left(T^X_\lambda x\right) = T^Y_\lambda \phi(x)$.

Definition (Invariance) $\forall \lambda \in \Lambda,\, \forall x \in X, \, \phi\left(T^X_\lambda x\right) = \phi(x)$.

Voxels - Similarity operations (the bad)

Let $T^X_\lambda$ be a group of transformations in the space $X$, with correspondents $T^Y_\lambda$ in the space $Y$.

Definition (Equivariance) A function $\phi : X \to Y$ is equivariant under the group $T$ if $\forall \lambda \in \Lambda,\, \forall x \in X, \, \phi\left(T^X_\lambda x\right) = T^Y_\lambda \phi(x)$.

Definition (Invariance) $\forall \lambda \in \Lambda,\, \forall x \in X, \, \phi\left(T^X_\lambda x\right) = \phi(x)$.

Observation Standard CNNs are equivariant to discrete translations!

Voxels - Similarity operations (the bad)

We can make 2D CNNs equivariant to $\mathbb{Z}_4$:

Voxels - Similarity operations (the bad)

We can make 2D CNNs equivariant to $\mathbb{Z}_4$:

And to other rotations!

Voxels - Similarity operations (the bad)

In 3D we have equivariance under $S_4$:

[1] CubeNet: Equiv. to 3D R. and Translation, D. Worrial and G. Brostow (2018)

Voxels - Memory complexity (the ugly)

• The elephant in the room is the $\Theta(n^3)$ complexity!

• But we can make it better;

Voxels - Memory complexity (the ugly)

Activation profile for different pooling layers in ConvNet

Voxels - Memory complexity (the ugly)

Activation profile for different pooling layers in ConvNet

Let's try octrees!

Voxels - Memory complexity (the ugly)

Octree - Adaptative data structure

Voxels - Memory complexity (the ugly)

[2] OctNet Learning 3D Repr. at High Resolutions, G. Riegler (2017)

Voxels - Memory complexity (the ugly)

Most state-of-the art voxel-based RNN use $32^3$ or $64^3$ voxels.

Voxels - Memory complexity (the ugly)

Most state-of-the art voxel-based RNN use $32^3$ or $64^3$ voxels.

Observation 3D-R2N2 (Choy, 2016) uses $32^3$.

Point clouds as 3D representations

Point clouds as 3D representations

• Behave well under similarity and other geometric transformations;

• More efficient than voxels - adaptative;

• Produce nice 3D models in NNs:

  • Architecture divided in two parts to account for large and smooth surfaces;

  • Good for segmentation analysis;

• Extracting meshes is complicated;

Generation network using point clouds

Observation Local and global specializations. Sounds familiar?

[3] A Point Set G. N. for 3D Object Reconst. from a Single Image, H. Fan (2016)

<!--

Hemisphere specialization - After stroke

[4] H. specialization of memory for visual hierarchical stimuli, D. C. Delis (1986)

-->

H. specialization - Split-brain patient

[5] Unknown source, taken from J. Gabrieli's lecture slides

H. specialization - Anatomy of the brain

Figure Drawing of corpus callosum, connecting the local (LH) and the global (RH).

Meshes for 3D reconstruction

Good in theory

Meshes for 3D reconstruction

Main takeaways

• Behave well with geometric transformations;

• Small memory footprint and fast operations;

• But hard to use in practice:

  • Intersections/overlaps or non-closed geometry;

  • Topology limitations;

Meshes for 3D reconstruction - AtlasNet

[6] AtlasNet: A Papier-Mâché Approach to L. 3D Surface G., T. Groueix (2018)

Meshes for 3D reconstruction - Pixel2Mesh

[7] Pixel2Mesh: Generating 3D Mesh Models from S. RGB Images, N. Wang (2018)

Occupancy Network

Learning 3D Reconstruction in Function Space

Mescheder, Lars and Oechsle, Michael and Niemeyer, Michael and Nowozin, Sebastian and Geiger, Andreas

2019

Occupancy Network

Ideally, we would like to know the occupancy function

$o : \mathbb{R}^3 \to \{0, 1\}$

Occupancy Network

Ideally, we would like to know the occupancy function

$o : \mathbb{R}^3 \to \{0, 1\}$

Key idea Approximate with a continuous function!

Occupancy Network

Definition For a given input $x \in X$, we want a binary classification neural network: $f^x : \mathbb{R}^3 \to [0, 1]$.

Occupancy Network

Definition For a given input $x \in X$, we want a binary classification neural network: $f^x : \mathbb{R}^3 \to [0, 1]$. But we can just add $x$ to the inputs, ie,

$f_\theta : \mathbb{R}^3 \times X \to [0, 1].$

We call $f_\theta$ the Occupancy Network.

Occupancy Network

Definition For a given input $x \in X$, we want a binary classification neural network: $f^x : \mathbb{R}^3 \to [0, 1]$. But we can just add $x$ to the inputs, ie,

$f_\theta : \mathbb{R}^3 \times X \to [0, 1].$

We call $f_\theta$ the Occupancy Network.

Observation The approximated 3D surface, for a particular $x_0$, is given by S = $\{p \in \mathbb{R}^3\,|\,f_\theta(p, x_0) = \tau \}$;

Occupancy Network

Representation capabilities

Occupancy Network

Representation capabilities

Occupancy Network - Training

1. Randomly sample points in the 3D bounding volume of the object - with padding;

Occupancy Network - Training

1. Randomly sample points in the 3D bounding volume of the object - with padding;

2. Evaluate the mini-batch loss

$\newcommand{\cB}{\mathcal{B}} \newcommand{\cL}{\mathcal{L}} \cL_{\cB}(\theta) = \frac{1}{|\cB|}\sum_{i=1}^{|\cB|} \sum_{j=1}^ K \cL(f_\theta(p_{ij},x_i), o_{ij})$

in which $\mathcal{L}$ is a cross-entropy classification loss.

Occupancy Network - Training

1. Randomly sample points in the 3D bounding volume of the object - with padding;

2. Evaluate the mini-batch loss

$\newcommand{\cB}{\mathcal{B}} \newcommand{\cL}{\mathcal{L}} \cL_{\cB}(\theta) = \frac{1}{|\cB|}\sum_{i=1}^{|\cB|} \sum_{j=1}^ K \cL(f_\theta(p_{ij},x_i), o_{ij})$

in which $\mathcal{L}$ is a cross-entropy classification loss.

Observation Different sampling schemes were tested, random in the BB w/ padding worked best.

Occupancy Network - Architecture

• Fully connected neural network with 5 ResNet blocks using conditional batch normalization;

• Different encoders depending on the input:

  • SVI - ResNet18;

  • Point clouds - PointNet;

  • Voxelized inputs - 3D CNN;

  • Unconditional mesh generation - PointNet;

Occupancy Network - MISE

Figure Multiresolution IsoSurface Extraction Method.

Results and comparisons

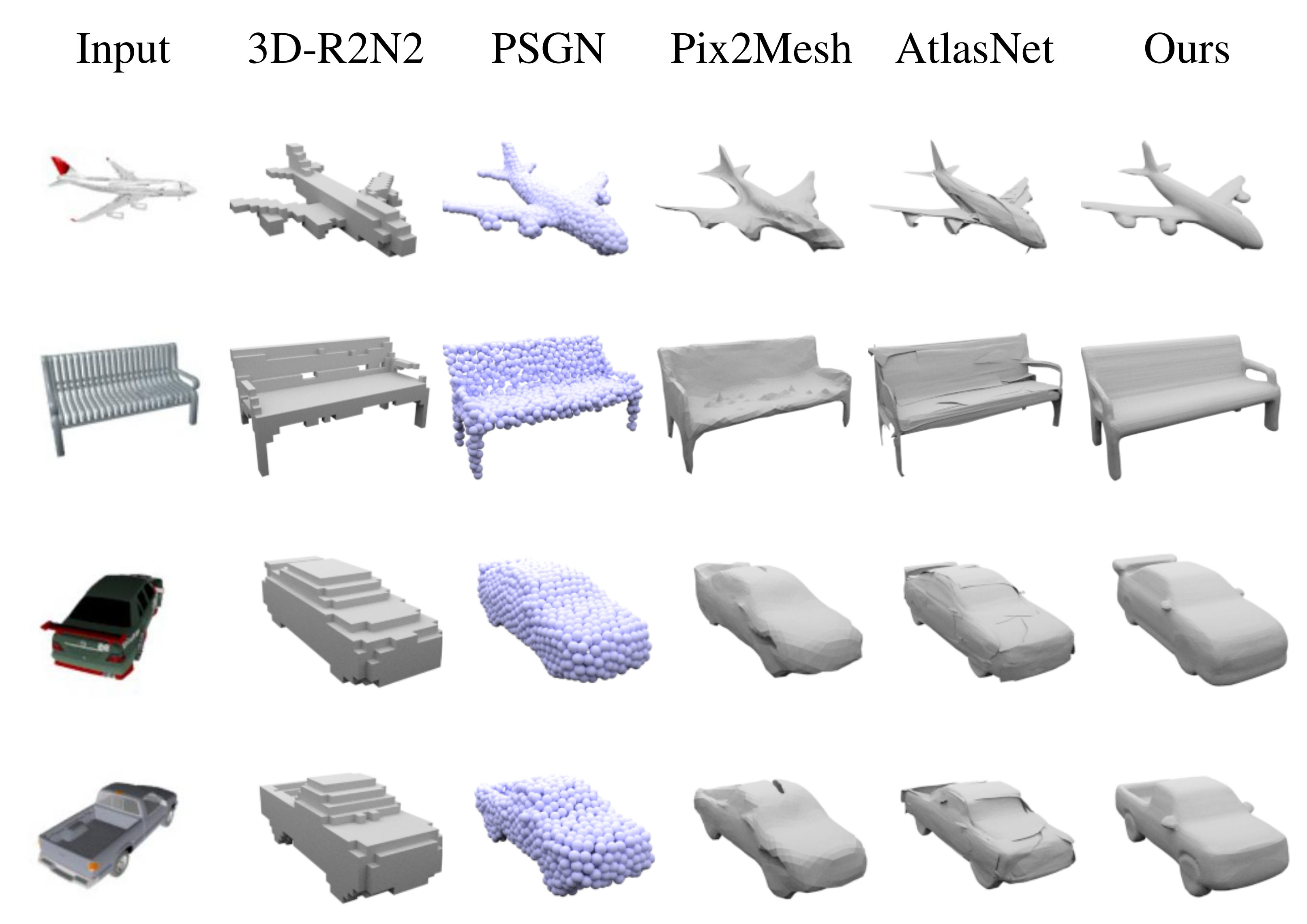

SI 3D reconstruction (ShapeNet)

SI 3D reconstruction (ShapeNet)

SI 3D reconstruction (ShapeNet)

SI 3D reconstruction (real world data)

Reconstruction from point clouds

Voxel super resolution

Figure Input resolution of 32^3 voxels.

Unconditional 3D samples

Figure Random samples of unsupervised models trained on different categories.

Failure cases and further work

Other references with similar ideas

[8] DeepSDF: Learning Continuous Signed Distance Functions for Shape Representation, Park et al. (2019)
[9] Learning Implicit Fields for Generative Shape Modeling, Chen et al. (2019)
[10] Deep Level Sets: Implicit Surface Representations for 3D Shape Inference, Michalkiewicz et al. (2019)

Thank you!
